Clinical Case: Bonding

with 3M™ Clarity™ Precision Grip Attachments


hero image
Chief concern

“Straighten front teeth and close upper spacing” was the patient’s initial request. End goal/plan after discussing with dentist was to distribute upper spacing to allow for veneers/crowns from Upper 4-4.



Case diagnostics

Mild skeletal class III, Dent class I. Missing lower 5s/retained lower Es. Small/hypoplastic upper 542|245. “Cosmetic” bonding remains on UL2, LL3,4. Bonding on UL3 were removed, patient refused to remove others pre treatment. 50% deep OB, minimal OJ due to class III pattern.



TX Plan

Not an ideal plan as patient refused to remove all old bondings prior to treatment and will plan veneers/crowns on upper 4-4 after orthodontic treatment, which will still leave him with spaces mesial to upper 5s. Space opened UR2 for veneer to be same size as bonding on UL2. Lower space closure and IPR lower 3-3 to allow lower anterior retraction which in turn will allow more upper space reduction. Lower Es will be maintained.



Bonding Procedure

10-15 minutes for bonding preparation and bonding procedure.



Retracted anterior

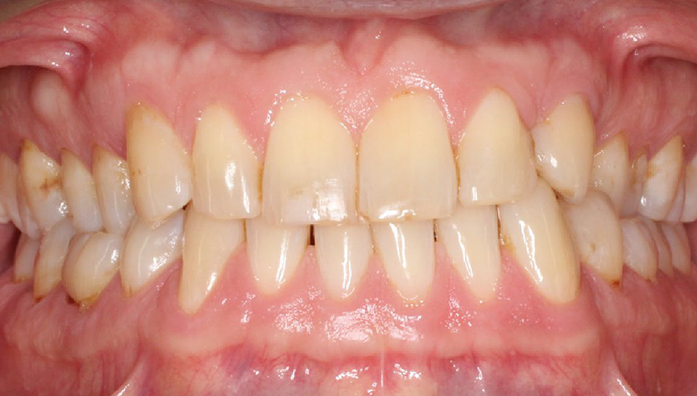

Close-up of upper and lower teeth with visible dental plaque and slight misalignment

Pre-bonding

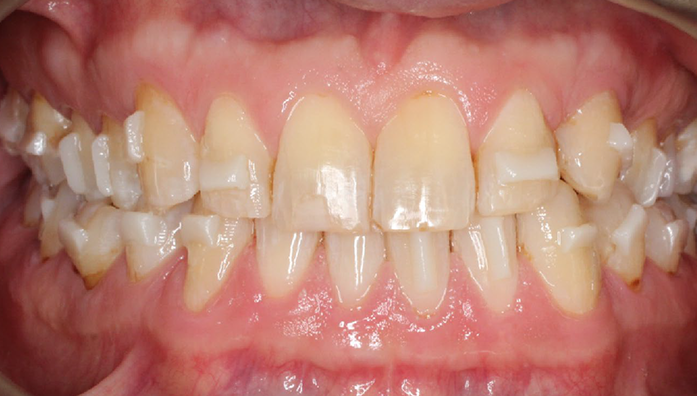

Close-up of upper and lower teeth showing dental misalignment and crowding

Bonded attachments

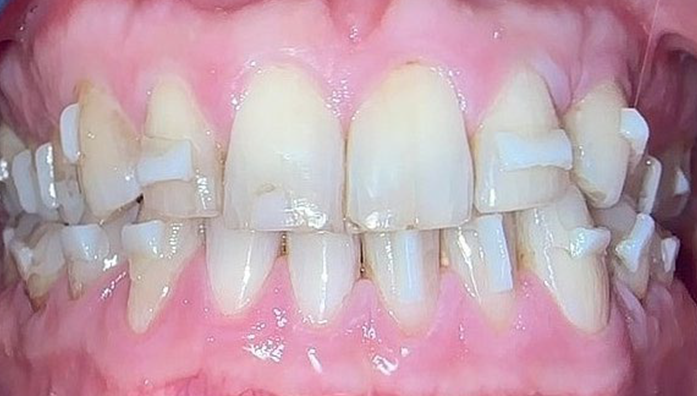

Close-up of upper and lower teeth with clear dental aligners fitted

1 month post-bonding

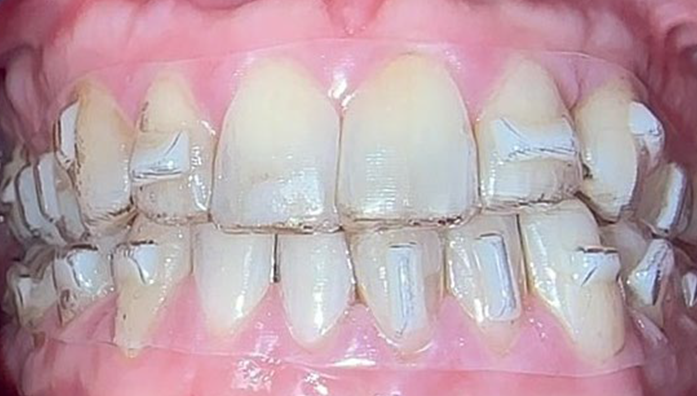

Close-up of upper and lower teeth with clear dental aligners fitted

1 month post-bonding

Close-up of lower and upper teeth with multiple white dental attachments on several teeth

Close-up of teeth with multiple small white dental wedges placed between them

Upper jaw with multiple teeth showing wear and discoloration

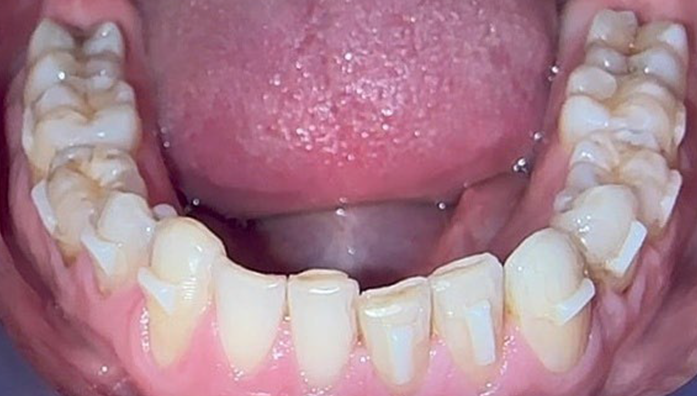

Lower jaw with natural teeth showing wear and discoloration

Pretreatment (scan)

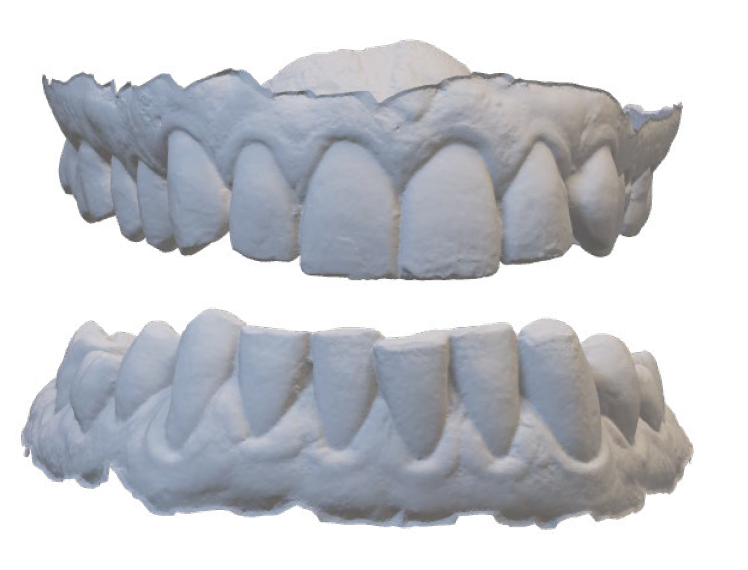

Plaster dental molds showing upper and lower teeth with detailed tooth shapes and gum contours

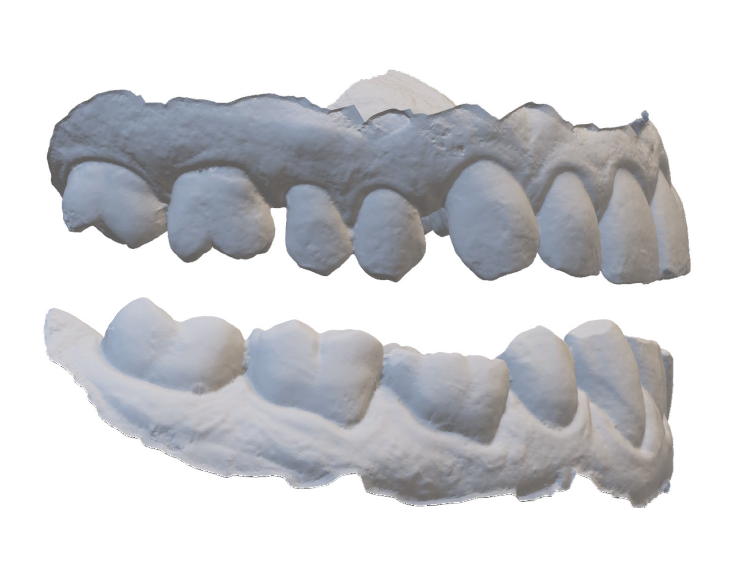

3D dental model showing upper and lower teeth arches

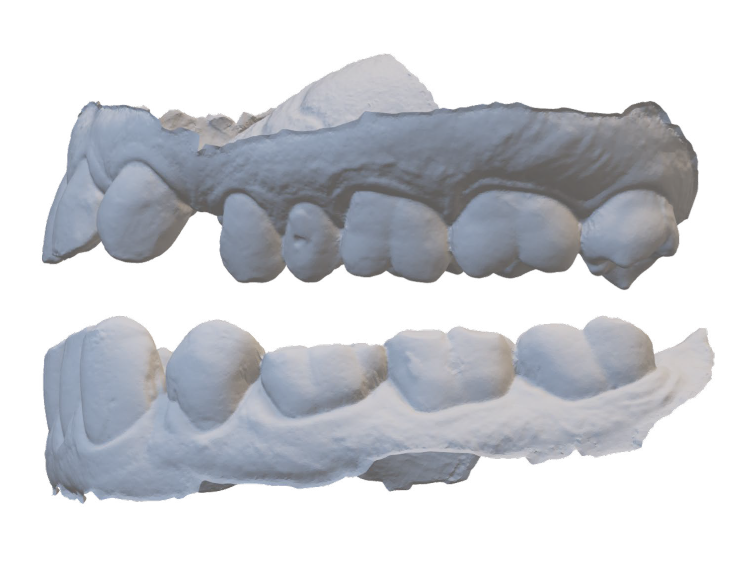

Dental plaster model showing upper and lower teeth in occlusion

Post-bonding (scan)

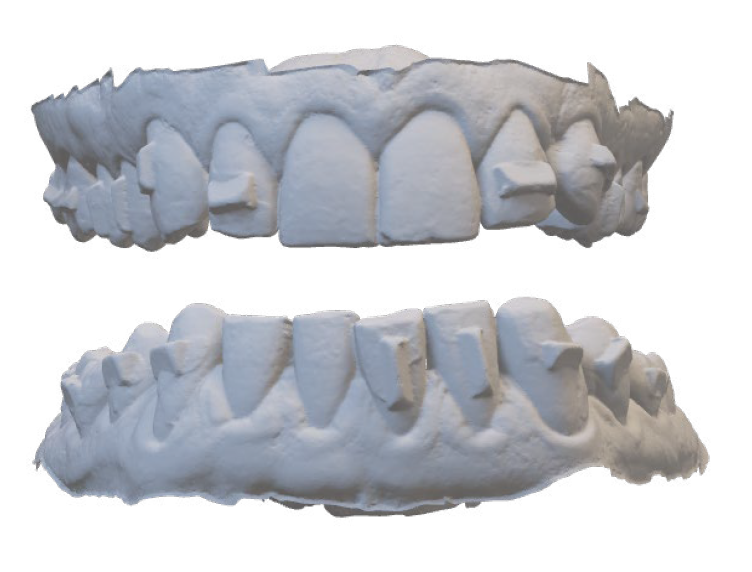

Dental plaster model showing upper and lower teeth with several teeth missing or damaged

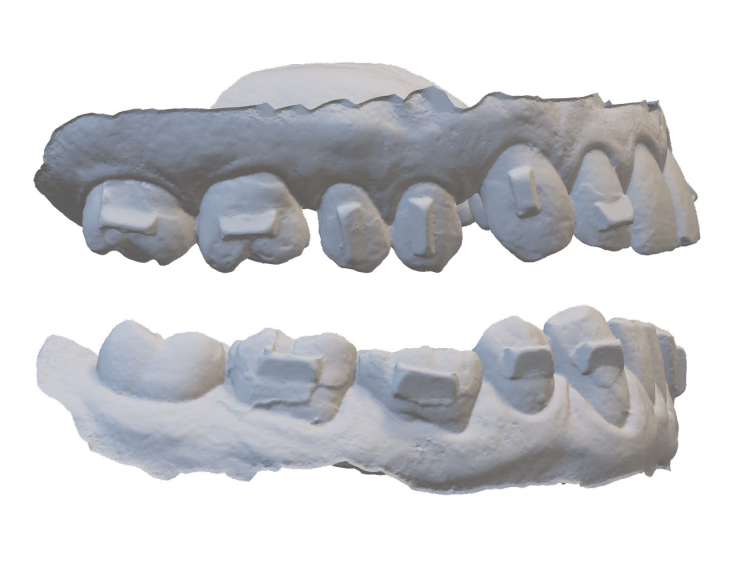

3D dental model showing upper and lower teeth with orthodontic brackets attached

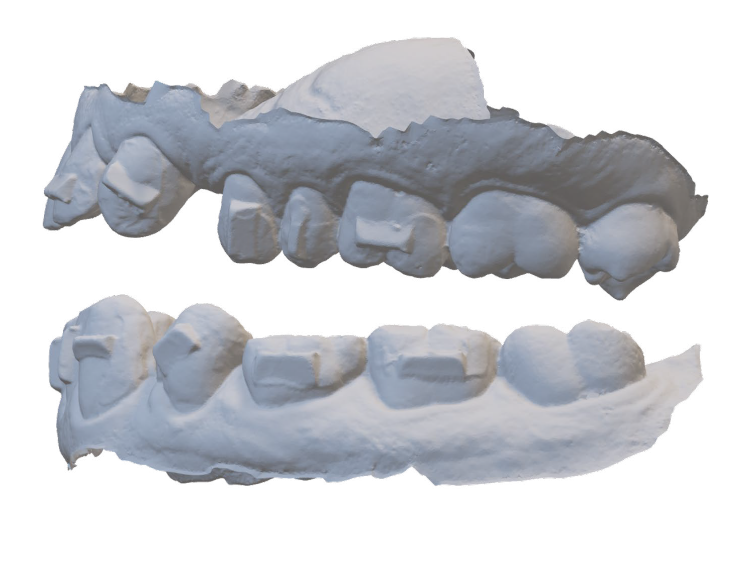

Dental plaster model showing upper and lower teeth with orthodontic brackets attached
